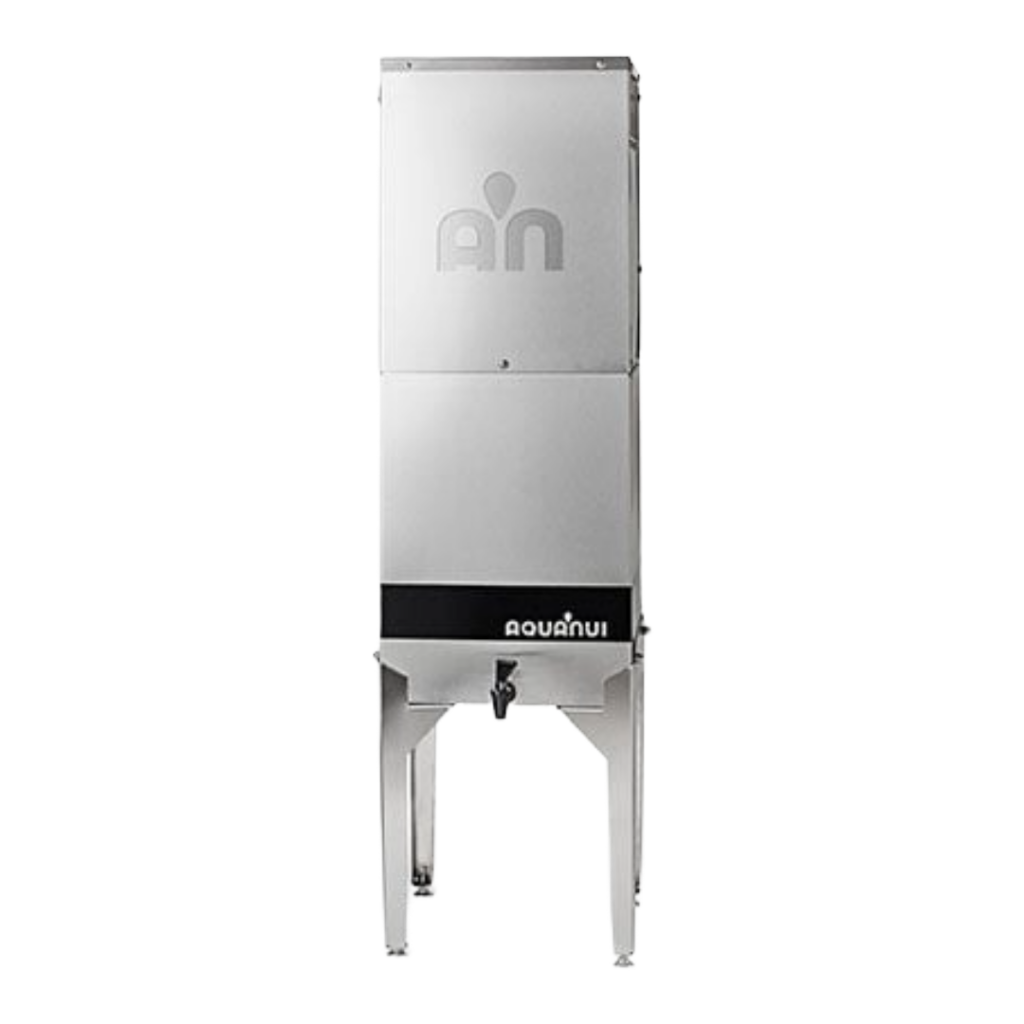

AquaNui 10 Gallon Automatic Home Water Distiller – Up to 10 Gallons Daily

Description

AquaNui 10 Gallon Automatic Water Distiller produces 10 gallons of high-purity distilled water every day and can store up to 10 gallons in its high-quality storage tank.  The storage tank includes a spigot, a stand with adjustable leveling feet, and a unique steam sterilization feature. For easy installation, all AquaNui premium water distillers include a saddle tapping valve, 15 feet of food-grade tubing, and a VOC pre-filter. Several extended-reach faucet upgrades are available.

Do you need a Pump Kit?

A pump kit is required to bring distilled water to a kitchen faucet, ice maker, and/or refrigerator from a remote location, such as a basement, garage or laundry room (wherever you place your distiller)

Pump Kit

Do you need an Ice Maker Hook-Up Kit?

We recommend the Ice Maker with Accumulator, especially when pumping water to the refrigerator spigot, ice maker, and kitchen spigot.

Ice Maker Hook Up Kit

Click Here to Download Product Manual

Technical Specifications

• Patented Design
• Manufactured in the USA
• Width: 12.75”
• Depth: 12”
• Height: 45” with 10 gal. Storage Tank
• Shipping Weight: 58lbs. with 10 gal. Storage Tank
• Machine Weight: 47lbs. with 10 gal. Storage Tank
• Current Draw: 120V, 10.5 amps
• Total Wattage: 1250 watts
• Max. Distilling Capacity: 10 gal. (40 liters) per day
• Storage Capacity: Choice of 5, 10, or 15 gal. storage tank
• Demand Pump: Optional
• Operating Pressure: 30-100 psi
• Source Water: Recommended softened source water.
• Floor Stand: Included
• *All figures stated are approximate and subject to change without notice.

Included With Your Distiller

The Distiller box contains:

• 1/4” compression nut (#9550)
• 15’ of 1/4” food-grade tubing (#9526-25R)
• VOC Pre-filter (#21048)
• Drain extension tube (#611)
• Owner’s Manual
• Warranty Card
• Power Cord

The Storage Tank box contains:

• Spigot (#95315)
• Saddle Tapping Valve (#9514)
• Spigot Seal (#144)
• Storage Tank Gasket (#6010)

How Your Distiller Works

The Pure Water AquaNui is designed to produce high-purity distilled water.

The Pure Water AquaNui is a fully automatic unit. A float and micro switches control the water level in the boiling tank, and level sensing probes control the storage tank.

The boiling tank operates on a modified batch approach. Feed water is automatically added until a high level is reached, which triggers the heating element and fan to operate. This begins the distillation cycle.

As the unit distills, the water level in the boiling tank falls. The low-level micro switch is triggered when the water level gets close to the heating element, causing feed water to be added until the high level is reached. If, for some reason, no water enters the boiling tank when needed, the fan and heating element will turn off until the condition is corrected.

Once the storage tank is full of distilled water, the unit will automatically shut down. The AquaNui will begin distilling again once the water level in the storage tank drops by approximately 1.5 Gallons. It continues to operate until the storage tank is full again.

There are various storage tank options available. The standard sizes are 5-gallon capacity, 10-gallon capacity, and 15-gallon capacity. Other specialty tanks are available. If additional storage is desired, then additional tanks can be added to increase the total storage amount.

The distilled drinking water is drawn from the storage tank through a faucet on the front of the tank or through the optional pump. The AquaNui is equipped with a manual drain valve, which allows the residue from the boiling tank to be drained periodically.

Maintenance and Cleaning

The following guide should be used for the maintenance of your distiller. The timing will vary according to your local water conditions. It is your responsibility to maintain your equipment. Without proper maintenance, your distiller may not produce optimum results. The following is an average guide to maintenance:

EVERY TWO WEEKS: Drain The Boiling Tank

Draining the Boiling Tank

The AquaNui has a manual drain valve that discards the contaminants and residue from the boiling tank when opened. This minimizes the build-up of scale in the boiling tank.

Important Note: If the unit is hot, turn the power OFF and allow it to cool before draining the boiling tank.

1. 1. Turn the Power Switch to OFF.
   2. Turn the valve on the back of the AquaNui and allow the residue to drain into a sink, drain, or bucket.
   3. Close the valve.
   4. Turn the Power Switch to ON.

EVERY 3-6 MONTHS: Change the VOC Filter

Changing the VOC Filter

1. 1. Turn the Power Switch to OFF.
   2. Turn the water off at the wall valve.
   3. Disconnect the filter from the tubing.
   4. Connect the inlet tube to the inlet side of the new filter.
   5. Hold the filter over a bucket or drain.
   6. Cycle water on and off several times until water from the outlet of the filter is clear.
   7. Connect the outlet of the filter to the tubing.
   8. Turn water and power ON.

EVERY 3 MONTHS: Clean the Boiling Tank

Cleaning the Boiling Tank

Notes and Cautions:
Caution: Under no circumstances should the cleaning solution be heated and run through a steam sterilization or distillation cycle.
Note: Failure to clean the boiling tank can result in scale build-up, causing premature heating element failure, as well as reduced purity of the distilled water due to the possibility of splash over of contaminants from the boiling tank.

To clean the boiling tank:

Turn the Power Switch to OFF. If needed, allow the unit to cool.

Drain the boiling tank (see instructions above).

Remove the back panel of the distillation unit.

Disconnect the boiling tank wire harness, inlet tube, and steam tube. Remove the boiling tank.

Manually fill the boiling tank until the scale is covered by water.

Add 2 Tablespoons of Lumen® descaler to the boiling tank. Allow to sit overnight.

Drain all of the water from the boiling tank.

Use a wet/dry vacuum to remove any remaining debris from the tank if needed.

Rinse the inside of the tank with fresh water.

Reinstall the boiling tank and turn the power ON.

WHEN NEEDED: Sterilize the Storage

Tank Sterilizing

Steam Sterilization is a method of disinfecting your storage tank. The storage tank must be empty before starting. To sterilize the storage tank:

1. 1. If you use the optional pump: Unplug the pump cord from the wall outlet.
   2. Use the storage tank faucet to drain the storage tank completely.
   3. Make sure the main power switch is ON.
   4. Place a cup or small bucket under the storage tank faucet, and open the faucet.
   5. Turn the fan switch to OFF. This will start a “Steam Sterilization” cycle. Steam will now be produced in the boiling tank. The steam will pass through the coil, but not be cooled. The steam will heat up and sterilize the storage tank. Allow the distiller to run for 30-45 minutes.
   6. Turn the fan switch to ON.
   7. Close the faucet on the storage tank.
   8. Allow the unit to fill the storage tank and shut off.
   9. Optional Pump: Plug the pump into the wall outlet.

AquaNui Brand Water Distillers are Proudly Made in the USA
